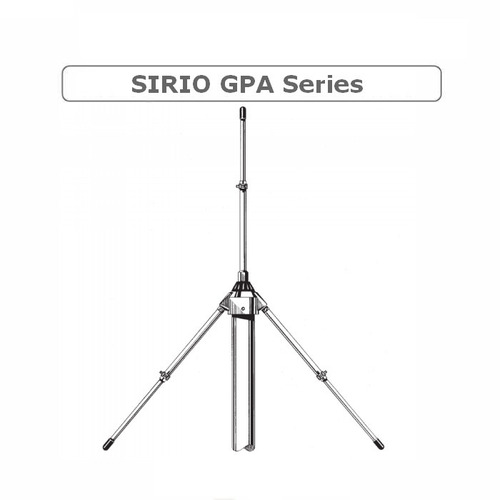

VHF base antenna GPA 135-175

Sirio GPA 135-175 is VHF base antenna for professional and HAM bands 135MHz - 175MHz. Manufactured from robust aluminim alloy and weather proof plastics. High quality materials garrantee maximum effectivеness and long term exploitation. Lengths must be alligned acording to the included frequency chart.

Download technical specifications from here:

Features:

- Base station antenna, Mono-band
- Omnidirectional, Unity gain
- Made of aluminium alloy 6063 T-832
- Tunable by whip length adjusting
- Side mast mounting allowed by optional bracket FT-2 code 2510004.00

Electrical Data:

- Type: 1/4 lambda ground plane
- Frequency range: tunable 135...175 MHz
- Impedance: 50ohm
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth at -3 dB = 86°
- Radiation angle: 0°
- Polarization: linear vertical
- Gain: 0 dBd - 2.15 dBi
- Bandwidth @ SWR  GPA 135-175: >13 MHz @ 135 MHz
- SWR @ res. freq.: < 1.2 @ start freq.
- Max. Power (CW) @ 30°C:
 GPA 135-175: 300 Watts
- Connector: UHF-female

Mechanical Data

- Materials: Aluminium, Chromed brass, Nylon
- Wind load / resistance: 29 N at 150 Km/h / 180 Km/h
- Wind surface: 0.03 sq.m.
-    Height (approx.): 960 mm
- Weight (approx.): 520 gr
- Radial length (approx.):  520 mm
- Mounting mast: 35-40 mm
